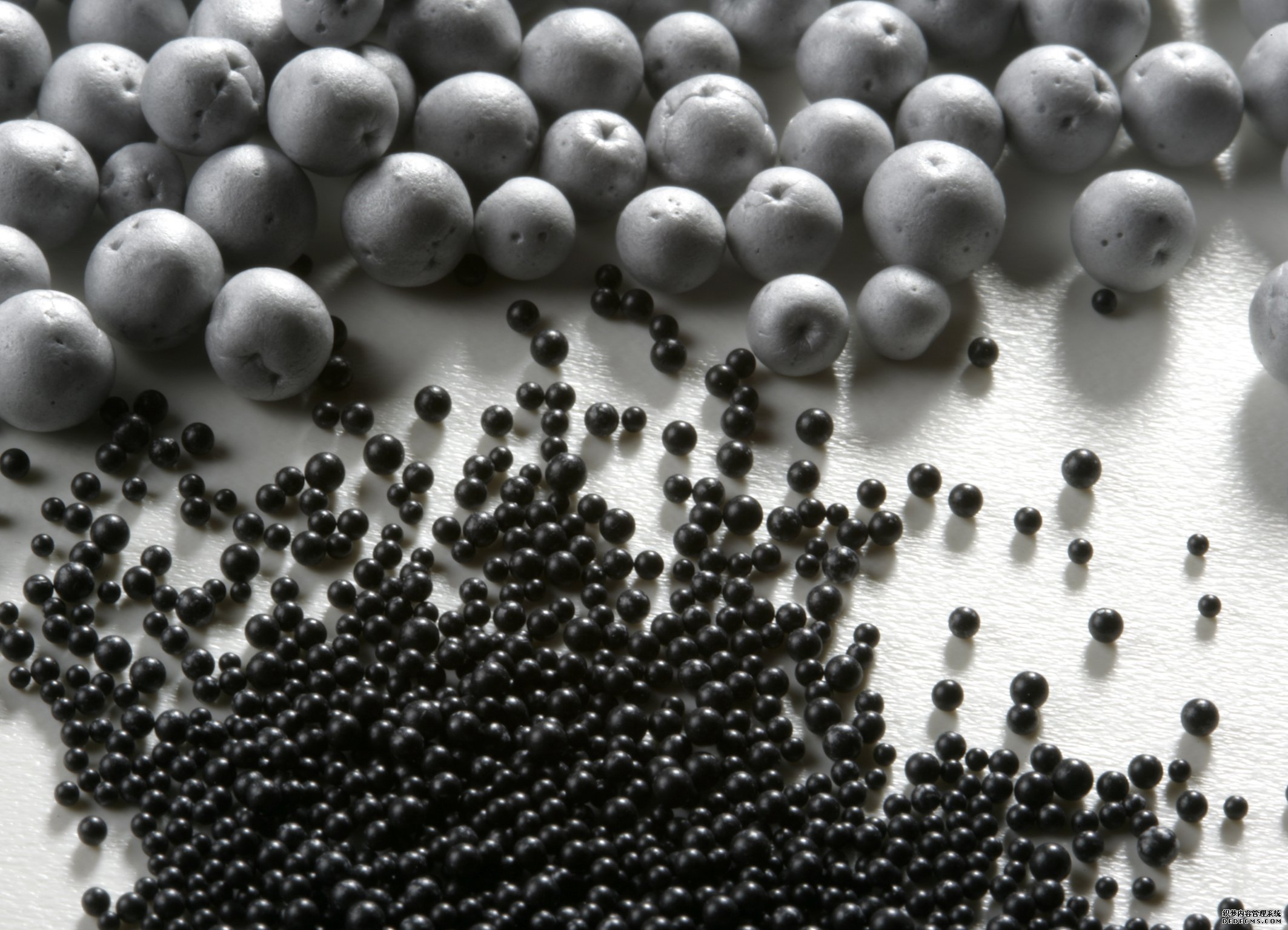

Graphite eps raw material

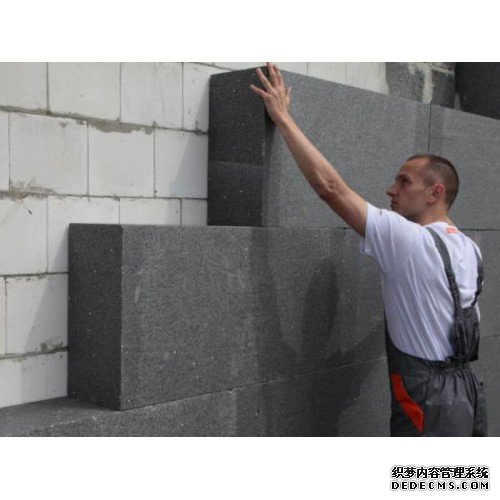

Good fire resistant capability, low thermal conductivity, low energy consumption; they are mainly applicable to higher-level thermal insulation materials of buildings.
Advantages of graphite eps:
1. First class production process worldwide
2. Intelligent DCS
3. Advanced equipments
4. Superior human resorces
5. Quality assurance: ERP and ISO9002
Specifications of graphite eps:
|
Classification |
Spec. |
Diam Range (mm) |
Times |
Density |
Blowing Agent(%) |
Residual SM(ppm) |
Moisture (%) |
Coating Agent (ppm) |
Oxygen Index(%) |
|
Graphite grade |
HF-301 |
1.00~1.60 |
55~70 |
14~18 |
5.5~6.8 |
≤2000 |
≤2.0% |
≤3200 |
≥30 |
|
HF-302 |
0.85~1.25 |
50~60 |
16~20 |
||||||
|
HF-303 |
0.70~0.90 |
40~55 |
18~25 |
||||||
|
HF-401 |
0.50~0.80 |
35~45 |
22~30 |
||||||
|
HF-501 |
0.40~0.60 |
30~40 |
25~35 |
